CM SERIES MOORING

  1. Home
  2. Moorings
  3. CM Series
CM Series Mooring Buoy - white
CM Series Mooring Buoy - white
CM Series Mooring Buoy - white
CM Series Mooring Buoy - white
CM Series Mooring Buoy - white

The CM Series Mooring Buoy has been designed to provide the ultimate in strength, durability and boat protection, giving increased security to any mooring. We make two versions of mooring iron, one from galvanized steel with a protective vinyl-coated eye, and the other from durable stainless steel. To provide strength and security, each version features a 1/2-inch central rod, a large eye (4-3/8 inch diameter), and a swivel (1-1/2 inch wide). The CM-Series is a long tested standard in mooring buoy design and is prefered by many boaters worldwide. The CM is available in three color versions: fluorescent red, all white or white with a blue stripe.

White
White Ss
Red
Red Ss

IMAGES OF ACTUAL COLORS MAY VARY
Despite every effort to accurately depict each product’s color when reproduced, color differences may arise from color monitors and print capabilities. The screen images are intended as a guide only and should not be regarded as absolutely correct.

Safety

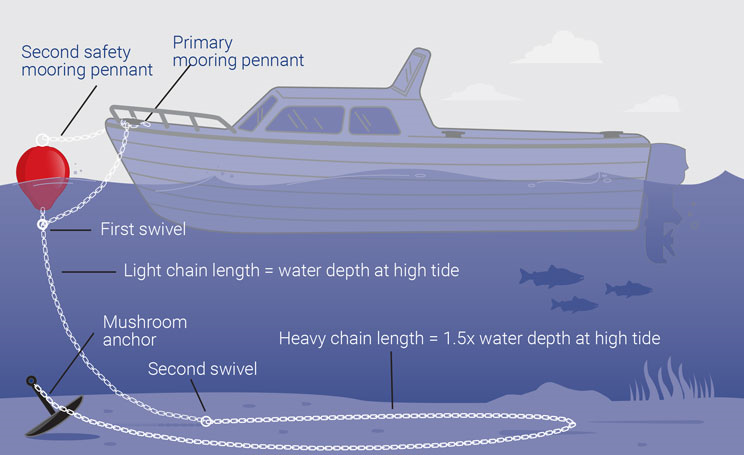

Mooring buoy diagram and mooring ball chain instructions

In a hard blow, the holding power of the mooring can be increased by lengthening the mooring pennant. This increases the scope of the mooring providing greater holding power – just be sure to check other boats in the moorage first to ensure you won’t foul another moored boat. In adverse conditions, a second mooring pennant can be run to the top eye as a safety in case the primary pennant chafes through or fails. All shackles should be moused to prevent opening. Electricians plastic tie wraps are an excellent means of securing a shackle.

CM Sizing

To figure out what size buoy you will need, determine the weight of the chain it must support. All chain has a stated weight per foot. Add another 25% to the total weight for safety. Always use chafing gear where mooring lines run through bow chocks or are likely to contact deck hardware. A thimble on the shackled end will prevent chafe at the buoy.

Color
Size
SKU
UPC
CM Series Features
  • Mooring Iron made with vinyl-protected galvanized or stainless steel
  • Large reinforced 4-3/8" eye and 1-1/2" swivel
  • Soft vinyl surface protects boat finishes
  • Polyform's unique vinyl valve seals securely
  • Even wall thickness for maximum strength and durability
  • Limited three year warranty

CM Series On-line Stores

Clicking on the following links will take you away from the Polyform website

Local Retailers

Enter your address, city or postal code, or country to find your local store.

Moorings Metric Size Chart

Model CM-2-SS CM-2 CM-3-SS CM-3
Size (diameter x length) 34.3 x 45.7 cm 34.3 x 45.7 cm 43.2 x 55.9 cm 43.2 x 55.9 cm
Tube Diameter 1.6 cm 1.6 cm 1.6 cm 1.6 cm
Circumference 107.8 cm 107.8 cm 138.7 cm 138.7 cm
Volume 25 liters 25 liters 44.7 liters 44.7 liters
Size (iron length w/ shackle) 78.7 cm 78.7 cm 88.9 cm 88.9 cm
Pieces per carton 1 1 1 1

Moorings US Size Chart

Model CM-2-SS CM-2 CM-3-SS CM-3
Size (diameter x length) 13.5 x 18 in 13.5 x 18 in 17 x 22 in 17 x 22 in
Tube Diameter 0.625 in 0.625 in 0.625 in 0.625 in
Circumference 42.4 in 42.4 in 53.4 in 53.4 in
Volume 6.6 gal 6.6 gal 11.8 gal 11.8 gal
Size (iron length w/ shackle) 31 in 31 in 35 in 35 in
Pieces per carton 1 1 1 1
Picking up a mooring buoy with a mooring hook, Polyform CM-2 White Mooring Buoy
